The purpose of solids control equipment in oil drilling is to remove the solid particles and impurities in the drilling mud, maintain the quality and performance of the drilling mud, and ensure the safety and efficiency of the drilling operation. The equipment used for solids control in oil drilling includes shale shakers, mud cleaners, centrifuges and other related transfer pumps. As professional supplier based in China, KES Separation dedicated in providing high quality solids control equipment and systems to our valuable customers and partners.

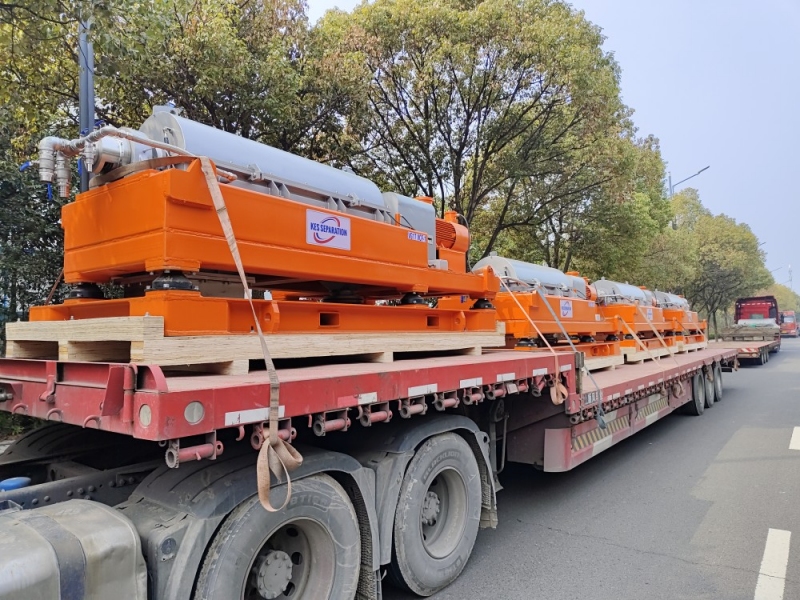

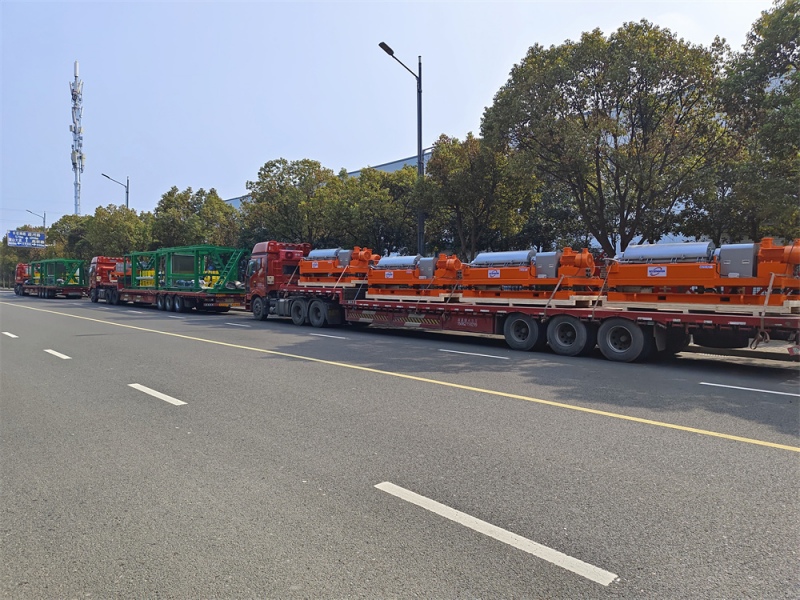

1)     18in big bowl big volume centrifuges.

The important part of the order is a fleet of 18in big bowl big volume centrifuges. With optimized design, our centrifuge can have a better full life cycle working performance compared with other brands. Also, the spare parts replacement cycle is minimized to reduce the manpower required for the maintenance. At same cost, our centrifuge can provide more value-added services to the drilling operations. The 18in big bowl centrifuge is equivalent to HS-2000 NOV Brandt centrifuge or Swaco CD500 Centrifuges. Some parameters table of Brandt centrifuges and KESS Centrifuges below for reference.

Besides 18in bowl size centrifuges, we can also provide 14in bowl centrifuge similar to Derrick DE1000 centrifuge with both FS and VFD drive types. Our 14in bowl size centrifuge also equivalent to Swaco 518 / Swaco 518HV and NOV brandt 3400 model centrifuges. We are all special designed for oil driling heavy mud treatment.   Along with the 18in big bowl centrifuges, we provided Germany brand Netzsch brand pumps for feeding centrifuge; and we provide telescopic skid to support the centrifuge at rigsite.

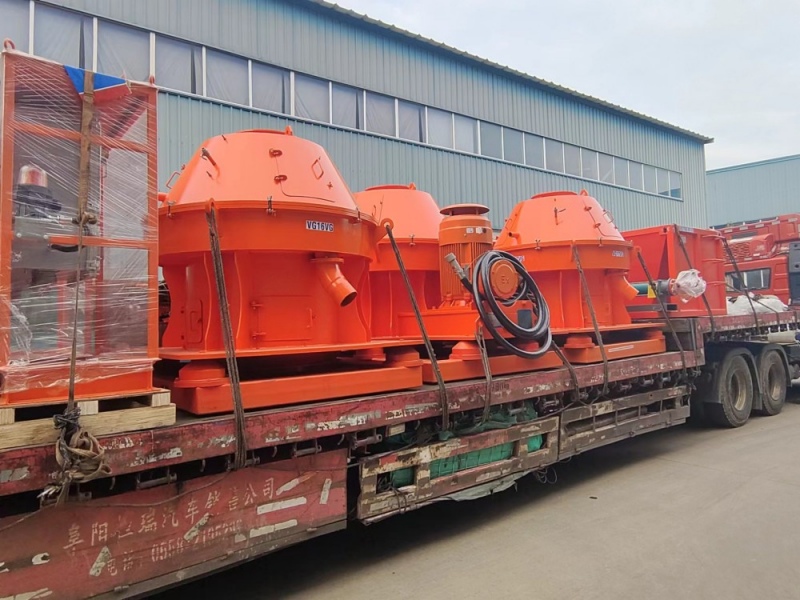

2)     High Quality Vertical cuttings dryer

Vertical cuttings dryer plays an important role in the drilling cuttings treatment which is discharged from shale shaker, to remove the oil on cuttings, recycle the OBM drilling fluids and dry the drilling cuttings for easier transportation.

The vertical cuttings dryer is equipped with specialized basket screen to block the solids inside and separate the liquid outside. The air knife with high pressure will be adopted during working to avoid screen gap block.

Customized high skid working with vertical cuttings dryer also provided by our company. The lifting hoist crane stand in the skid to help to remove the upper cover of the dryer for maintenance, safe working and minimize manpower. More technical features and advantages below for reference.

- Static balance & dynamic balance to bell hood with scraper

- The bell hood is made by nodular cast iron QT500, longer service time

- the scraper equipped to the bell hood is made by High chromium alloy HRC48

- Static balance & dynamic balance to Rotor with flights

- The rotor is made by cast steel material, longer service time and easy to do balance

- The flights made by High chromium alloy HRC48

- Static balance & dynamic balance to screen basket with steel frame and scraper

- Highly precise SS316 screen basket to ensure your better separation

- Screen opening to fit different job conditions:0.25mm 0.35mm and 0.5mm

- Control panel with Schneider soft starter, better performance

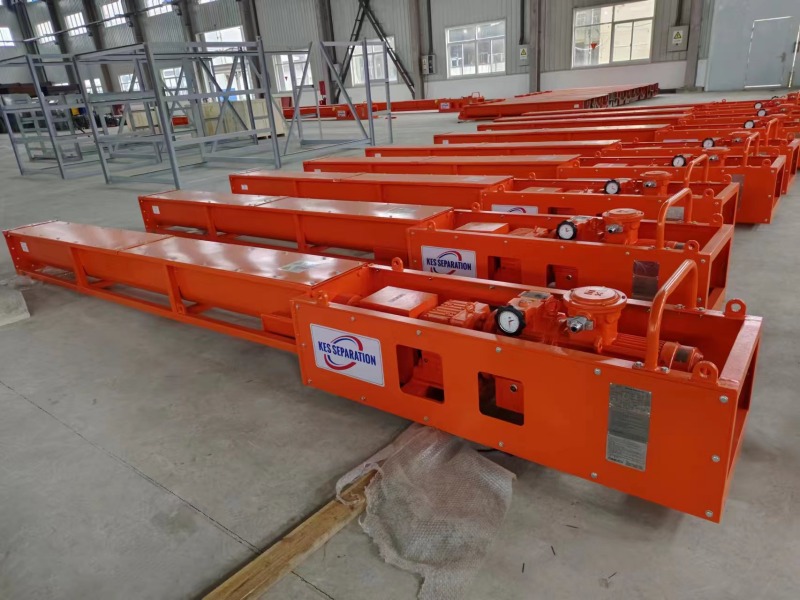

3)    High quality screw conveyor

Screw conveyor is the conveying equipment working in solids control & drilling waste management. We provided more than 10sets screw conveyor in this order. It is customized screw conveyor with manual speed regulation drive, by adopting China top brand gearbox and motors. More technical features of high end screw conveyors below for reference:

- The conveyor tube adopt good quality carbon steel, after sand-blasting and good coating, can stand longer life time service even in tough areas.

- The impeller adopt 16Mn manganese material, much wear-resistance when convey materials with lots sands.

- The drive assembly adopt manual regulation speed gearbox and premium brand motor to aim at a stable and durable working performance.

- Protective steel frame is designed to protect the drive end

- no sharp corners on the outside of the screw conveyors to protect the workers from injured

Competition is fierce in the market, and it is important to understand the needs and requirements of the client, to win an order. Here are some suggestions to help you win an order in the face of fierce competition. And this is what we always do to our valuable customers & partners.

1) Provide high-quality products or services: The most important factor in winning an order is providing high-quality products or services that meet the needs of the client. Make sure your solids control equipment is of high quality, reliable, and cost-effective, and demonstrate this to the client through demonstrations and samples

2) Understand the client's needs: It is essential to understand the specific needs of the client, including their requirements, budget, timeline, and preferences. Use market research and customer surveys to understand the client's expectations and needs, and develop a tailored proposal that meets their requirements.

3) Build a strong relationship with the client: Establish a good rapport with the client and establish trust through communication and cooperation. Provide prompt responses to client inquiries and concerns, and listen carefully to their feedback to ensure that you are meeting their expectations.

4) Provide excellent after-sales service: Ensure that your company provides excellent after-sales service to ensure customer satisfaction and build a good reputation in the market. Provide prompt response to any issues or complaints, and provide solutions that meet the needs of the client.
