Shale Shaker Screen
Your drilling efficiency with precision-engineered shaker screens from KES Separation. Our high-quality screens, available in a range of API sizes, ensure optimal performance at a budget-friendly price point. Explore our customizable options for the perfect fit to enhance your drilling operations.
Description
Shale Shaker Screen for Efficient Solids Control in Drilling
The Shale Shaker Screen is a critical component in the solids control system used in oil and gas drilling operations. It plays a vital role in separating drilling cuttings from drilling fluid, ensuring efficient recycling and improved drilling performance.
This screening solution is designed to handle high flow rates and heavy drilling mud while maintaining durability and efficiency.
What is a Shale Shaker Screen?
A Shale Shaker Screen is a mesh-based filtering component installed on shale shakers. It helps remove solid particles from drilling fluids during the first phase of solids control.
Shale shakers are considered the primary separation equipment in drilling operations.
Key Features
- High screening efficiency
- Durable and long-lasting mesh
- Easy replacement design
- Compatible with various shaker models
Working Principle
- Drilling mud flows onto the screen
- Vibrations separate solids from liquid
- Clean fluid passes through
- Solids remain on the screen
This process ensures effective solids removal and fluid recovery.

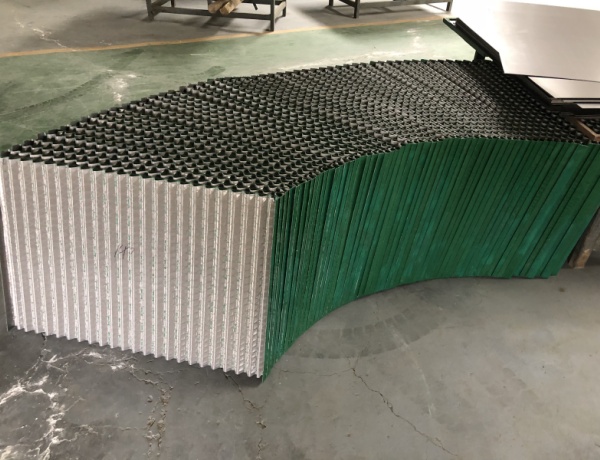

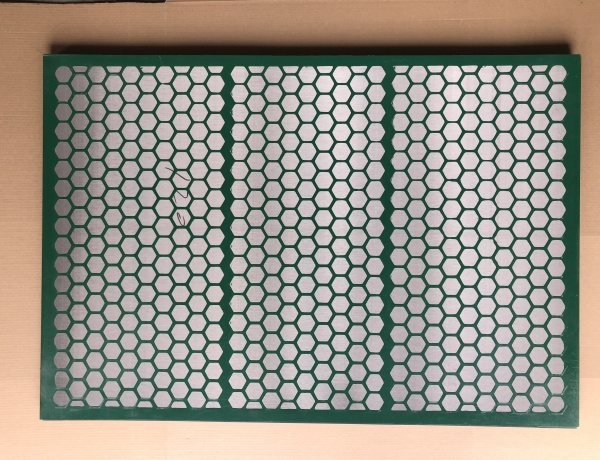

Types of Shale Shaker Screens

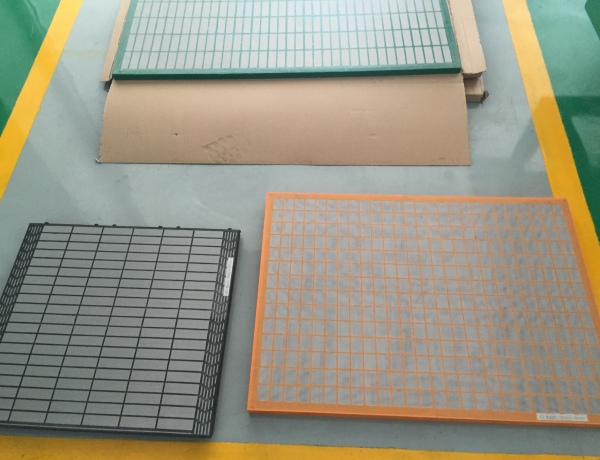

- Flat screens
- Pyramid screens
- Hook strip screens
- Composite screens
Applications
- Oil & Gas Drilling
- HDD (Horizontal Directional Drilling)
- Mining operations
- Construction projects
Shale shakers can reduce oil on cuttings significantly and improve drilling efficiency.
The Shale Shaker Screen is an essential component for efficient solids control in drilling operations. It improves performance, reduces waste, and ensures cost-effective drilling.

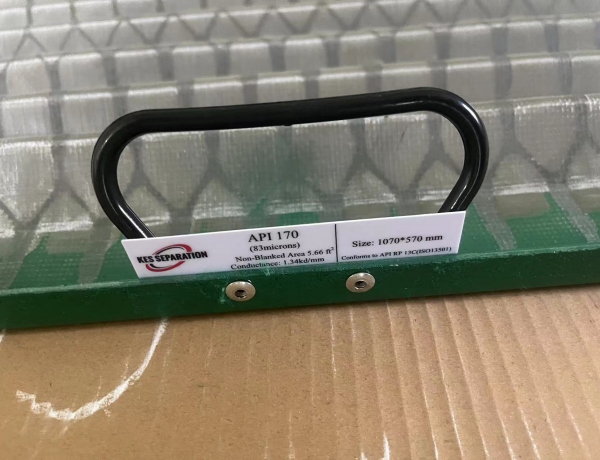

What API Size Shaker Screen available from KES Separation?
| API Screen Number
|
D100 Separation (Microns) |
| API 10 | >1090 to 2180
|
| API 18 | >925 to 1090
|
| API 20 | >780 to 925
|
| API 25 | >655 to 780
|
| API 30 | >550 to 655
|
| API 35 | >462.5 to 550
|
| API 40 | >390 to 462.5
|
| API 45 | >327.5 to 390
|
| API 50 | >275 to 327.5
|
| API 60 | >231 to 275
|
| API 70 | >196 to 231
|
| API 80 | >165 to 196
|
| API 100 | >137.5 to 165
|
| API 120 | >116.5 to 137.5
|
| API 140 | >98 to 116.5 |
| API 170 | >82.5 to 98
|
| API 200 | >69 to 82.5
|
| API 230 | >58 to 69
|
| API 270 | >49 to 58
|
| API 325 | >41.5 to 49 |
High quality and affordable price
If you are looking for replacement shaker screens for your drilling equipment, you may want to consider KES Separation products. All of the shale shaker screens that we offer are high quality but extremely affordable. With a wide range of mesh designs and customizable screen options available, we can provide the perfect screen for your equipment at a price you can afford.
Learn more about shale shaker:
