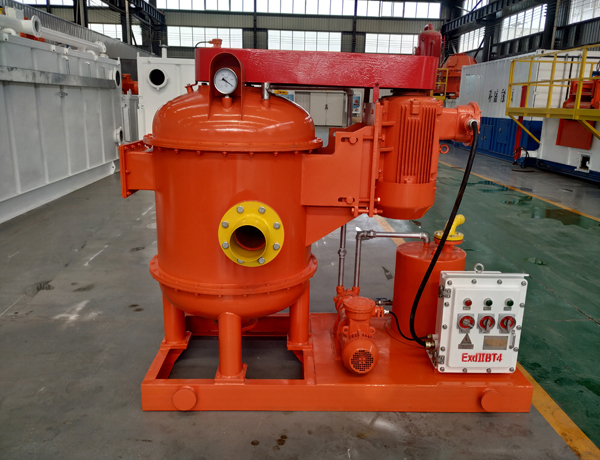

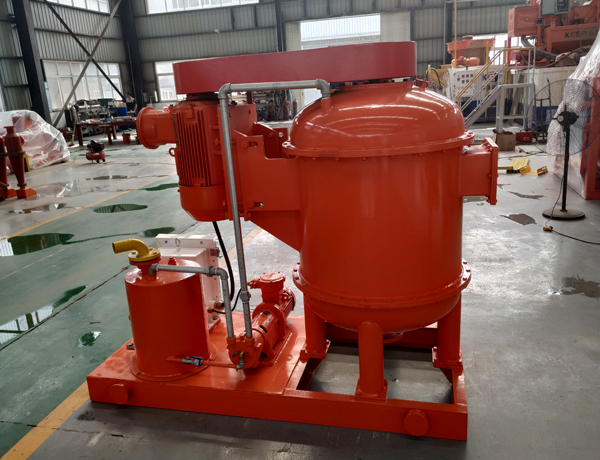

KES Separation- KSCQ Series Vacuum Degasser for Ultimate Solution on Drilling Fluids

Achieve superior drilling performance and significant cost savings with the KES Separation KSCQ Series Vacuum Degasser. This advanced system is engineered to efficiently remove invasive gases from drilling fluids, a critical process for maintaining mud gravity and stabilizing viscosity.

By optimizing your drilling mud, you can reduce operational costs and enhance overall wellbore stability. The KSCQ degasser is not just a degasser; its multi-functional design also allows it to serve as a heavy-power agitator, making it a versatile and essential component of any mud circulation purification system.

How the KSCQ Series Vacuum Degasser Guarantees High-Efficiency Gas Removal

The KSCQ Vacuum Degasser is designed for reliability and effectiveness. It utilizes a vacuum pump to draw fluid into the tank, where a high-speed rotor sprays it against the inner wall, facilitating gas-liquid separation. The system features a constant temperature water circulation vacuum pump for enhanced safety, especially when handling flammable gases.

Its unique design places the main motor at a lower position to improve stability, and the simple belt drive mechanism reduces maintenance. With a handling efficiency of over 95%, the KSCQ series ensures maximum gas removal, leading to a more consistent and predictable drilling process.

The Long-Term Benefits of a High-Performance Degasser

Available in two models, the KSCQ270 and the KSCQ360, these degassers offer tailored solutions for different project scales. The KSCQ270 has a capacity of ≤270 m³/h with a 22kW main motor, while the KSCQ360 handles up to ≤360 m³/h with a 37kW main motor. Both models feature a main diameter of 920mm, a vacuum degree of -0.02 to -0.04 MPa, and a 7.5kW pump motor. The robust construction and adherence to ExdIIBt4 explosion-proof standards make them suitable for the demanding environments of oil and gas drilling, foundation construction, and mining sludge applications.

Contact us today to learn more about how the KES Separation KSCQ Series Vacuum Degasser can benefit your specific application.

Technical Features of KSCQ Vacuum Degasser:

• The drilling fluid enters the vacuum tank with the help of a vacuum pump, while the gas leaves the tank.
• In operation, the water circulation pump vacuum temperature is constant, suitable for flammable and explosive gases, ensuring safe and reliable operation.
• The drilling fluid is sprayed through the rotor window at high speed to the tank wall, the gas in the drilling mud is broken and the gas in the drilling mud is completely separated.
• The main motor is installed at one end to reduce the center of gravity of the vacuum degassing machine.
• Belt Drive simplifies the structure of the reducer
• Due to the help of the gas-liquid separator, the gas and water cannot be released at the same time, the trachea is uninterrupted, the circulating water is supplied to the vacuum pump, saving water.

• The suction pipe should be inserted into the drilling tank and used as a high power mixer if the drilling mud does not contain gas.

Frequently Asked Questions (FAQs)

1. What is a vacuum degasser, and why is it important for drilling?

Ans- A vacuum degasser is a device that removes entrained gas from drilling fluids. It is crucial for maintaining the density (gravity) and viscosity of the mud, which prevents kick-related issues and ensures stable drilling.

2. How does the KSCQ series degasser work?

Ans- It utilizes a vacuum pump to pull drilling fluid into the tank. A rotor then spins at high speed, flinging the fluid against the tank wall. This process exposes a larger surface area, allowing trapped gases to separate and be vented away.

3. What are the main benefits of using the KSCQ degasser?

Ans- The key benefits include restoring mud gravity, stabilizing viscosity, and significantly reducing overall drilling costs by preventing fluid property deterioration.

4. Can the KSCQ degasser handle different types of mud?

Ans- Yes, the KSCQ series is suitable for various mud circulation purification systems and can handle different types of drilling fluids.

5. Is the KSCQ degasser safe for use with flammable gases?

Ans- Yes, it is designed with a constant temperature water circulation vacuum pump and an ExdIIBt4 explosion-proof standard, making it safe for use in environments where flammable gases may be present.

Technical Parameters:
