Combination with domestic and foreign engineering treatment experience and technology, KES Separation shield slurry circulating system provide slurry balance for TBM machine. It adopts a centralized visual control system, which can easily monitor the operating parameters of each running equipment. The modular design greatly facilitates the expansion of the system. A number of advanced separation technologies have been applied to effectively separate complex geological structures.

Product Features:

• Large processing capacity, 600-3600m³/H Mud circulation requirements for shield construction
• Advanced separation technology is adopted to ensure smooth tunneling of shield machines in complex geology
• Adopt active noise reduction and closed noise reduction structure to meet the requirements of urban construction at night

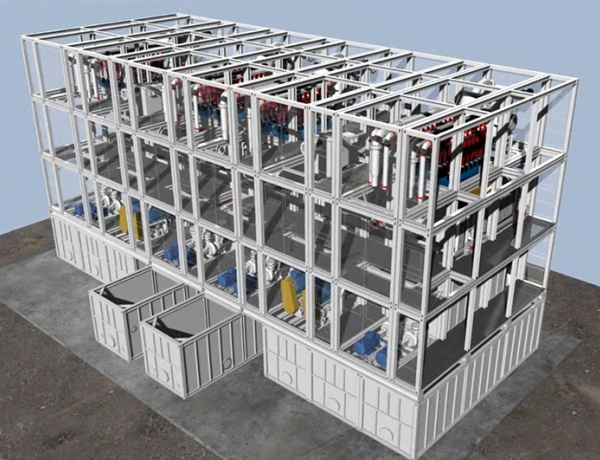

• Modular design of the overall structure greatly shortens the equipment installation cycle and makes it easy to expand with the project requirements
• Flexible design scheme to meet the requirements of urban construction site
• Fully automatic slurry mixing equipment is used to meet the rapid replenishment and emergency discharge of the shield circulation system and avoid construction risks
• Centralized control (MCC) system is adopted to realize equipment operation monitoring, adjustment, operation and fault visualization

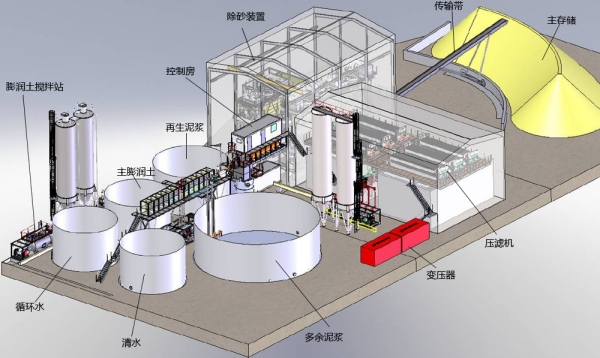

Slurry water separation process for shield tunneling

The slurry separation system process design needs to be tailored according to the project geological structure and shield machine parameters. We have professional process engineers for seamless project docking. The type selection of all equipment shall be strictly designed and calculated to combine the actual working conditions of the project.

KSTBM slurry separation system produced by our company is mainly applicable to ¢ 6m - ¢ 13.5m slurry balanced shield machine, meeting the requirements of 650-520m ³/ H Requirements for mud circulating treatment. KSTBM mud water separation station can perfectly meet the needs of tunneling technology. It can continuously separate the slurry suspension from the solid particles in the slurry loop. The combination of high exciting force screening equipment and low tangential point cyclone effectively reduces the water content of waste slag and the solid content of mud. The extremely small particles left in the mud have an important influence on the driving speed and daily footage and other parameters.
