NOV Brandt HS-3400 Centrifuges VS KALW363 Decanter Centrifuge
2018-03-14

NOV Brandt is one of the biggest oil service company & oil equipment supplier in the world. In Upstream drilling equipment, decanter centrifuge play key roles for drilling operation. NOV Brandt centrifuge have covered large scale of users in many different countries. Take example of HS-3400 centrifuge, it can be used to process unweighted and weighted drilling mud, it can also be used to process OBM, WBM and SBM drilling mud. According to different type gearbox, the brandt centrifuge can be defined to fully hydraulic centrifuge and electric motor driven centrifuges. In the HS-3400 centrifuge family, there are HS-3400FS, HS-3400FVS, HS-3400VSD and HS-3400VS

KES Separation is professional in oil & gas drilling equipment including Shale shaker, cyclones, decanter centrifuge, agitators, pumps etc.  With deep understanding of the working principle and working conditions, KES Separation can offer purpose-target endurable centrifuge with competitive price. Following are comparison of Brandt HS-3400 centrifuge and KALW363 centrifuge.


Model

HS-3400 centrifuge

KALW363 Centrifuge

Bowl Diameter

14in

14in

Bowl Length

49.5in

50in

LD Ratio

3.5

3.5

Max Speed

3250RPM

3200RPM

Max. G force

3100

3063

Normal Operation

1500~3250RPM

1500~3200RPM

Max. Processing capacity

20~30m3/h

20~30m3/h

Driven type

VFD or fixed speed

VFD or fixed speed

Gearbox Ratio

52:1

57:1

Gearbox Type

Two stage, planetary

Two stage, planetary

Main motor

30kw

30kw

Back drive motor

11kw

11kw

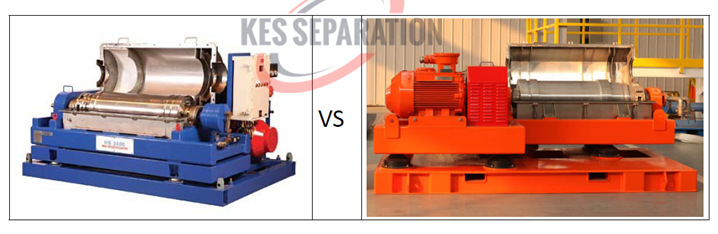

Comparison Table of NOV Centrifuge and KES Separation Centrifuge

From above parameters table list, we can see there is little difference between HS-3400 centrifuge and KALW363 centrifuge. With better delivery time and better price, KES Separation centrifuge can give better support to customers.
Another, we can offer speed regulation Mono pump which can work together with fixed speed centrifuge. The Mono pump flow rate can be adjusted by the regulation wheel in very convenient way. This type Mono pump is similar to Netzsch Nemo pump. For offshore drilling operation, we can offer DNV certified containerized centrifuge and feed pump, the DNV certificate equipment will be definitely accepted by project owners.  For more request, pls contact us by drop email to us, sales@kesseparation.com; sales@kesseparation.cn;
