Vertical cuttings dryer plays important role in drilling waste management. It can separate and recover the valuable drilling fluids for reuse, and separate the harmful solid rock debris- which is called drilling cuttings in oil drilling industry. After treatment by vertical cuttings dryer, the drilling cuttings can be very dry with less than 5% Oil on cuttings. The vertical cutting dryer application make it possible to reduce the volume of drilling waste, the dry drilling cuttings can be stored in woven bag without any liquid leakage.

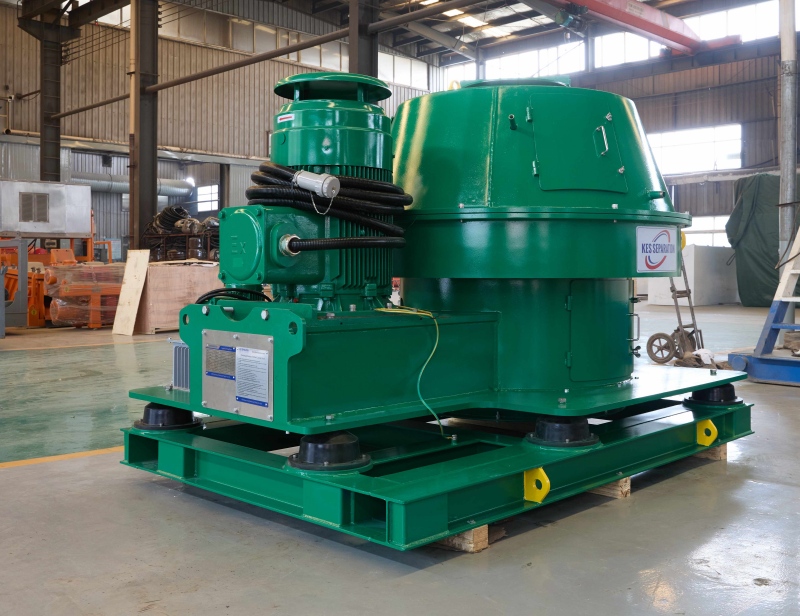

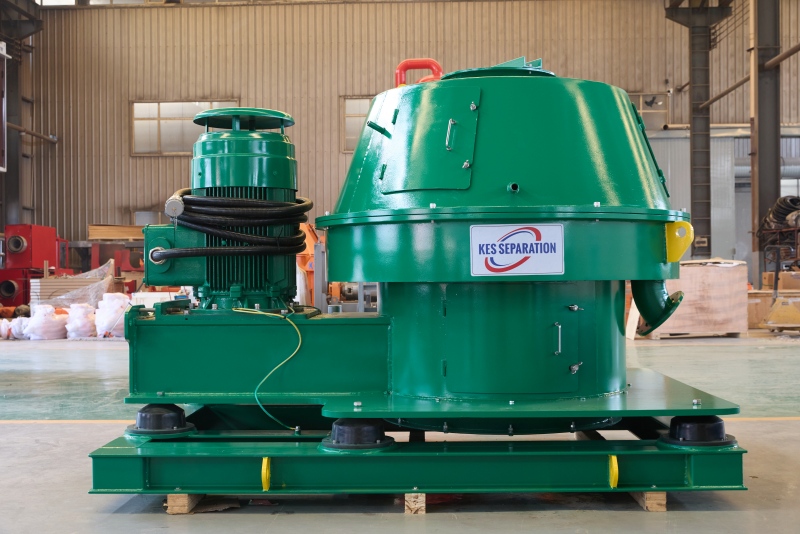

Working principle of KESMI Vertical Cuttings Dryer:

1. The drilling cuttings slurry discharged from shaker will firstly drop down to screw conveyor, where the screw conveyor will convey the drilling cuttings slurry forward to a inclined secondary auger. The secondary auger will feed the drilling cuttings slurry to the vertical cuttings dryer.
2. The drilling cuttings slurry will drop down to the distribution disk before entering into the vertical cuttings dryer,  and then drop to the dryer evenly for a better separation performance.
3. After separation by vertical cuttings dryer, the dry solids will be drop down to the discharge auger and will be collected by woven bags and the clean liquid will be pumped to the centrifuge for further treatment.
4. After feeding to centrifuge, the fine solids and ultra fine solids will be removed for mud weight cutting. This is usually completed by high speed and big bowl centrifuges with G-force up to 1500~2000G. We have booth 14in and 18in big bowl centrifuges to achieve the tasks.

Technical Advantages of KESMI Vertical Cuttings Dryer:

• Dynamic balance treatment on bell hood, rotor and screen basket to make sure the working performance and stability
• All the 8sets bell hood scraper are weighed before installation, to ensure the balance
• All the 8sets rotor flights are weighed before installation, to ensure the balance
• All the 2sets screen basket scraper are weighed before installation, to ensure the balance
• The screen basket we adopt SS316L material for longer service life and assured performance
• Equipped with high pressure air knife to clean the basket during working to avoid screen block
• Equipped with water jetting system to work for WBM drilling cuttings separation
• Equipped with low pressure alarm interlocked with Control box & oil tank pressure gauge
• Both fixed speed and variable speed vertical cuttings dryer can be supplier per request

Top brand list of Vertical cuttings dryer Suppliers

• KESMI Oilfield Products (KES Separation)
• GN Solids Control (GN Separation)
• Elgin Separation Solutions (CSI dryer)
• MI-Swaco Equipment & Service provider
• NOV Brandt Equipment & Service provider
• Derrick Centrifuges Corporation

KESMI Oilfield Products Co. Ltd is a sister company of KES Separation Machinery.  KESMI is created to target on turnkey solutions supply to oilfield activities. Our main product including Solids control, drilling waste management, Workover rigs, mud pumps and accessories, oilfield electrical system etc. Welcome to contact us for any requirement.
